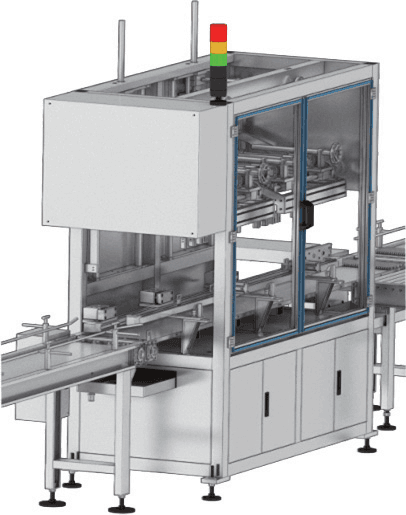

15 FULLY AUTOMATIC HIGH RATE DISCHARGE TESTING MACHINE

BASIC DATA

• Machine Dimension(mm)：(L * W * H) 3000 * 1620 * 2100
• Machine Efficiency: 4 pcs/min
• Air Supply：0.6 MPa 0.1 m3/min
• Water Supply: 2.5 L/min 0.2MPa
• Cooling Water Temp.: 10 - 25℃
• Testing Voltage：6 -18V
• Discharge Current Setting: 150 A - 1500A
• Discharge Time Setting: 1 - 99S
• Termination Voltage: ＞ 6V
• Work Stations: Two stations, One rejection station
