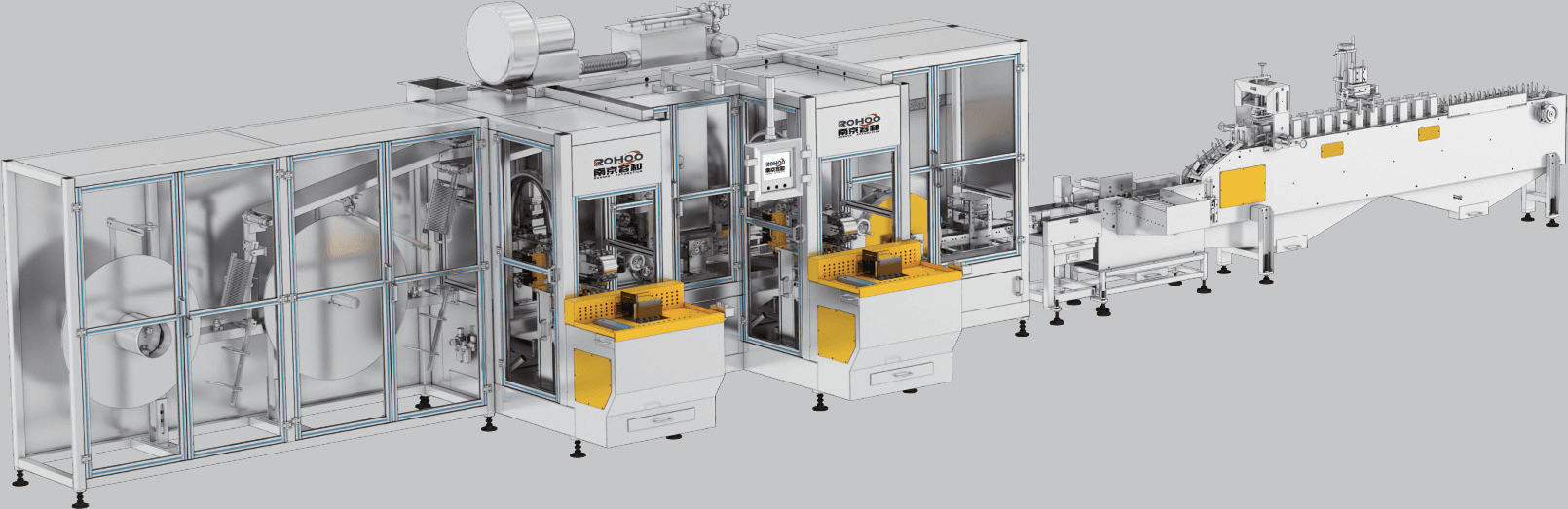

01 ENVELOPING AND STACKING MACHINE
This series can meet the diverse production needs for different separator batteries
BASIC DATA
| Standard | Argument |
|---|---|
| MACHINE DIMENSION(mm) | (L x W x H) 1250025003000 mm (With Output Conveyor) |
| CAPACITY | Enveloping Speed: Up to 150 pcs/min |
| NUMBER OF SEPARATOR ROLLER | 1 sets or 2 sets |
| POWER SUPPLY | AC380V，50Hz，27kw |
| AIR SUPPLY | 0.2 m³/min 0.6 Mpa |
| PLATE SCRAP RATE | ≤ 0.1% |
| UNQUALIFIED RATE | ≤ 0.1% |
OPTIONAL PRODUCTS
- Group Weighing Unit
- Group Film Wrapping Unit
- Assembly Pressure Detection Unit
- Group Alignment Unit
- Output Conveyor
FUNCTION DESCRIPTION
- This series can meet the diverse production needs for different separator batteries
- Achieve separator cutting, enveloping automatically
- Even cutting, smooth performance, without flash
- Kinds of parameter for automatic running can be set via HMI
- Parameter setting for changeover can be set via HMI
- Manual mode can be selected for parameter settings and testing
- Password protection and authority control for parameter settings
- With various checking points including less plate, extra plate, plate stuck, half wrap and etc
- Equipped with automatic lug cleaning & brushing device
- Enveloping and stacking according to set parameter automatically
- Output automatically after completing the plate groups
- Manually adding plate and separator is available
- Motor with frequency conversion for matching machine running speed
- Automatically monitoring motor running. Warning immediately once motor runs wrong
- With the port for ventilation, dust removal on the negative pressure blower
- E-stops for necessary area equipped on machine
