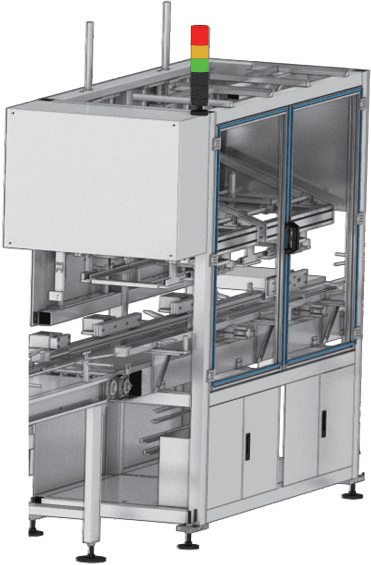

16 FULLY AUTOMATIC HIGH VOLTAGE LEAKAGE TESTING MACHINE

BASIC DATA

• Machine Dimension(mm)：(L * W * H) 3000 * 1500 * 2010
• Machine Efficiency: 4 pcs/min
• Air Supply：0.6 MPa 0.1 m3/min
• Water Supply: 2.5 L/min 0.2MPa
• Cooling Water Temp.: 10 - 25℃
• Testing Voltage：0 - 20KVA, Accuracy ± 5 %
• Max Output Current: AC 10 mA
• Discharge Time Setting: 1 - 99S
• Time Setting: 0-99 S, Accuracy: ± 0.1 S
• Work Stations: Two stations, One rejection station
